3 Inch High Flow Stainless Steel Exhaust System

Here are some pics of my 3 inch Stainless Steel Exhaust system that was custom built by Andrew at AM Performance in Adelaide. The system features all 304 stainless construction from the turbo flange to the tailpipe with a 100cell/square inch Metallic High Flow Catalytic Converter, Stainless Flex Coupling, 2 flow through 3" Resonators and SS "V" Clamps. I also have a quick change non-cat for off road use.

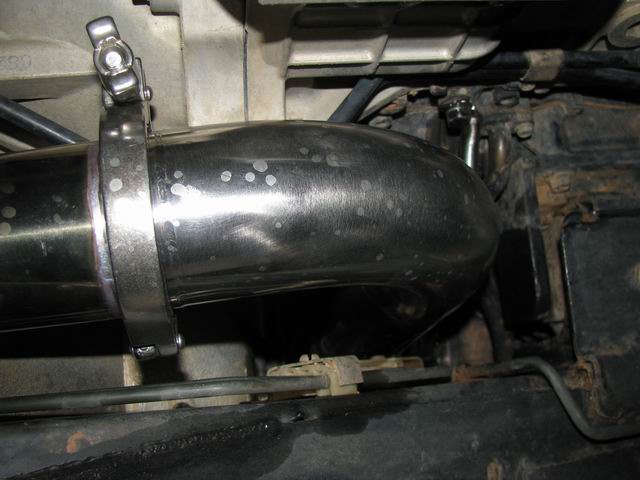

3" Dump
Dump With Heat Shield

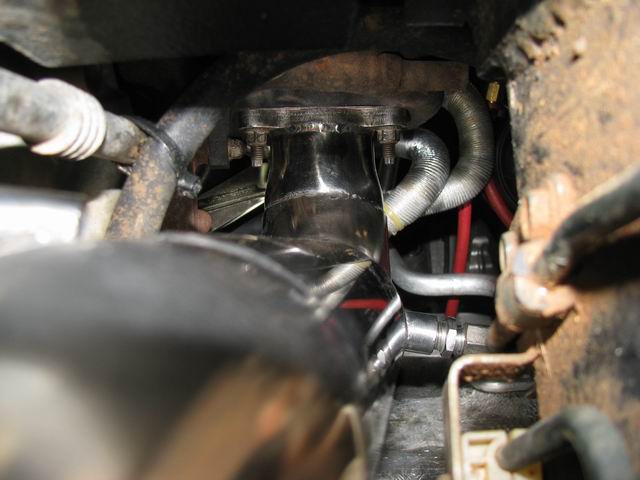

Dump On Turbo
Dump Coupling

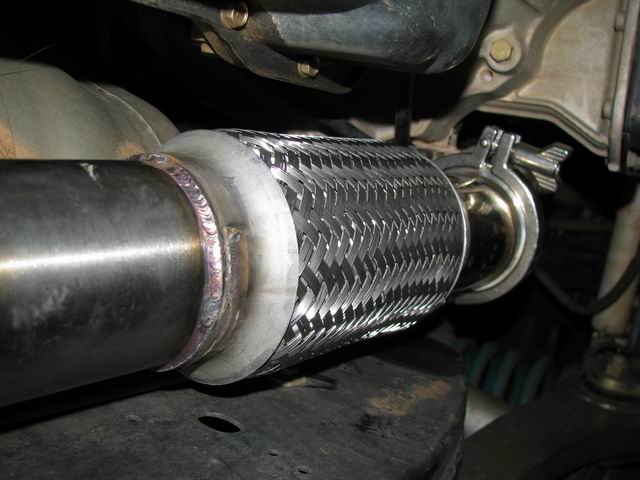

Flex Pipe and Coupling

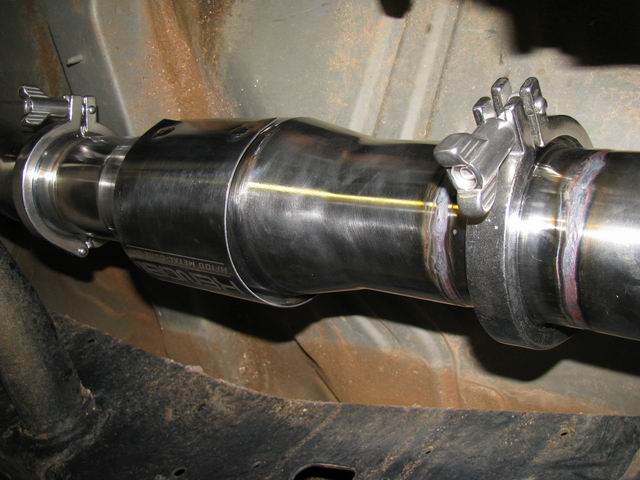

100cpsi Metallic Cat

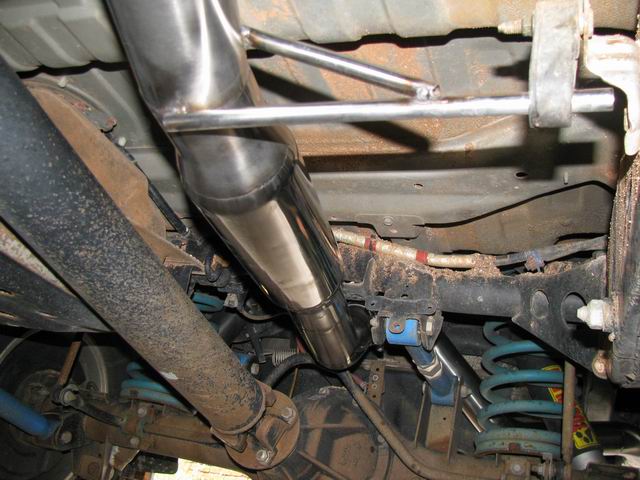

Flow Through Muffler

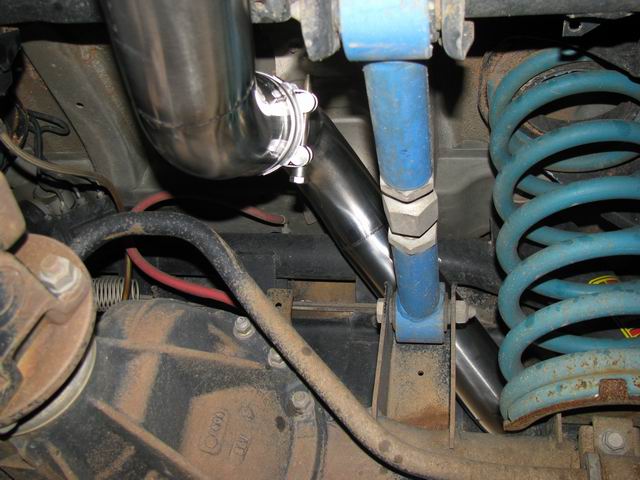

Rear Pipe And Coupling

Flow Through Resonator

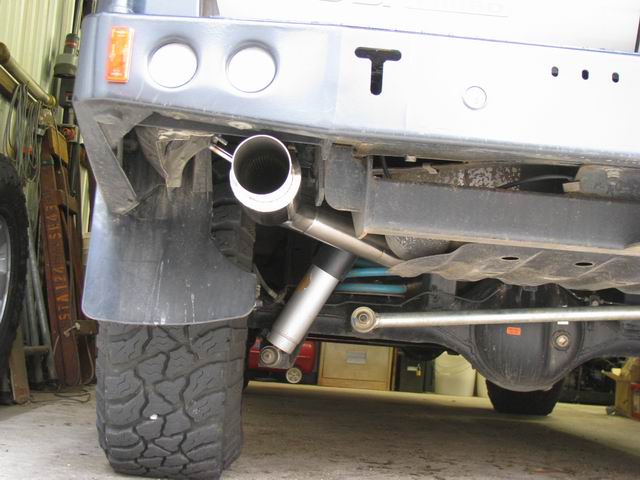

Tailpipe

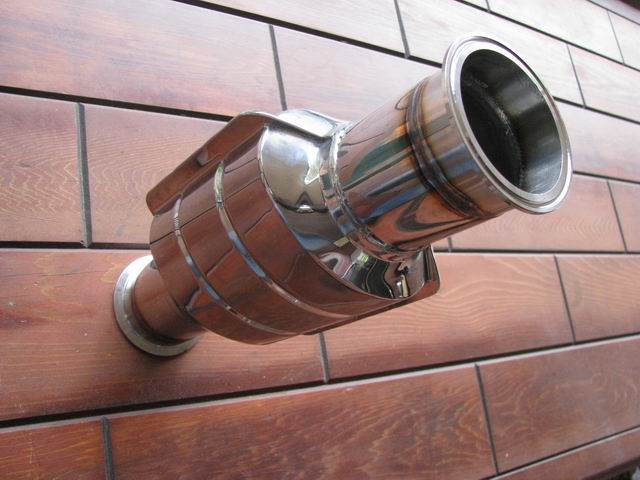

Replacement Non-Cat

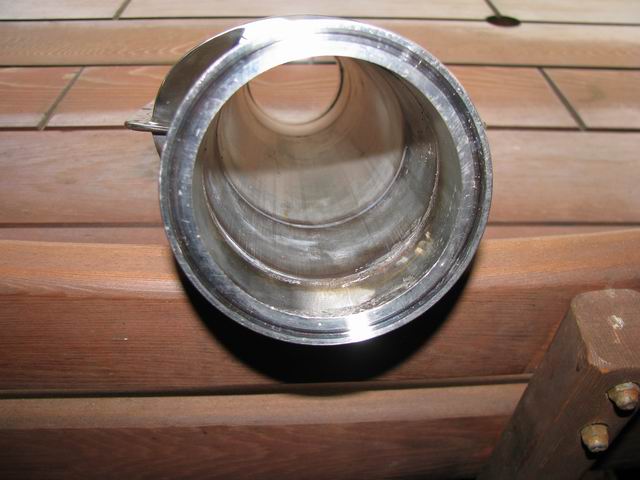

Non-Cat V Clamp Flange
